10-Nozzle Chocolate Gummy Candy Depositing Machine
- Product name: candy depositing machine, gummy depositor, chocolate depositing machine, candy filling machine, gummy machine
- Model: MS-C001
- External size: 1250*780*960mm
- Total power: 4.2KW
- Input power: AC220V, 50/60HZ
- Machine weight: 200KG
- Hopper capacity: 20L
- Production capacity: 1~5 trays per minute
- Operated by: 1~2 people
- Product Details

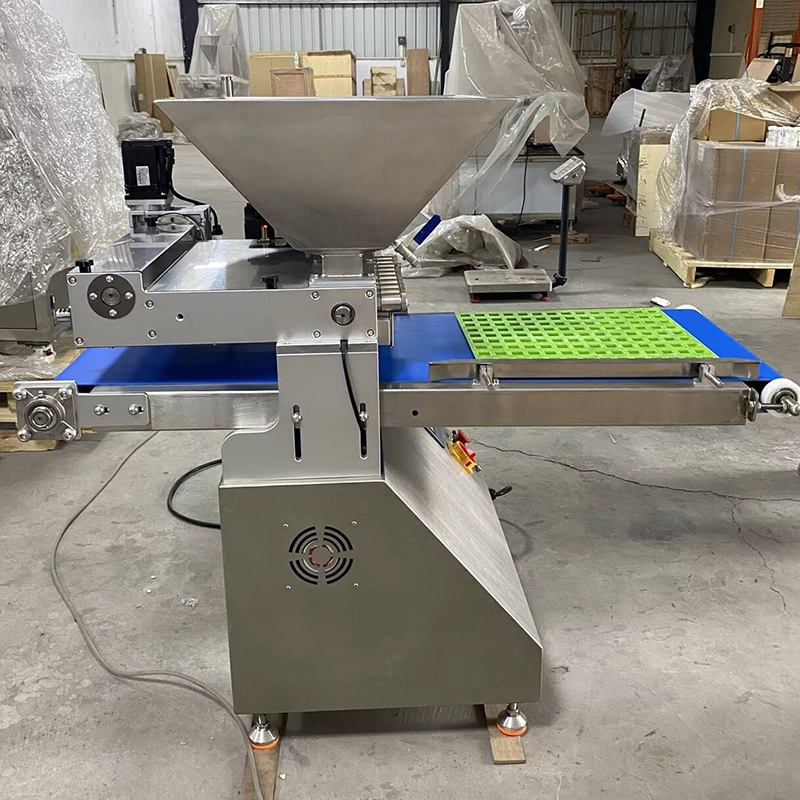

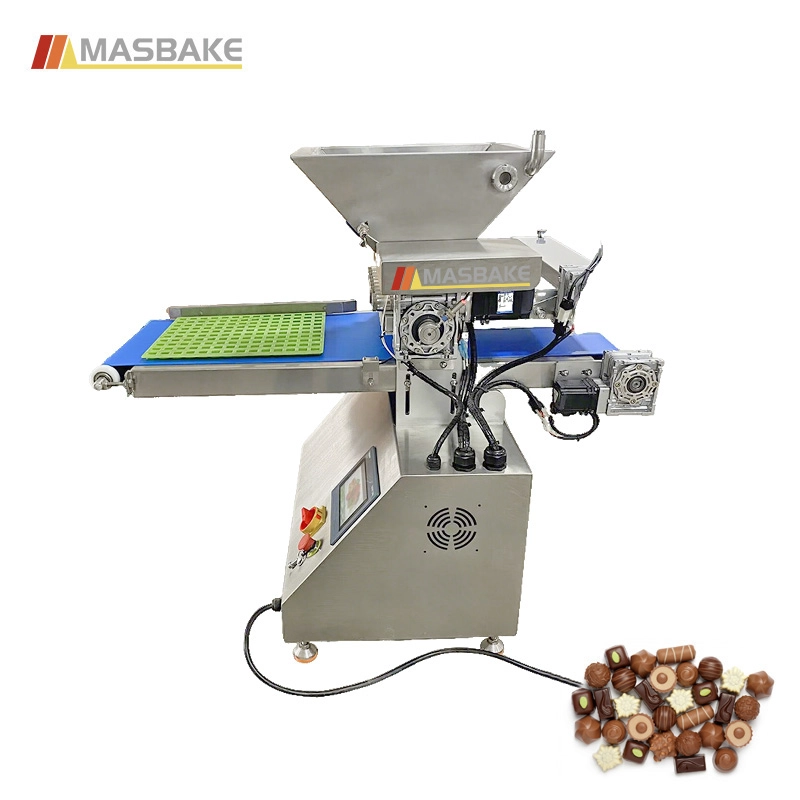

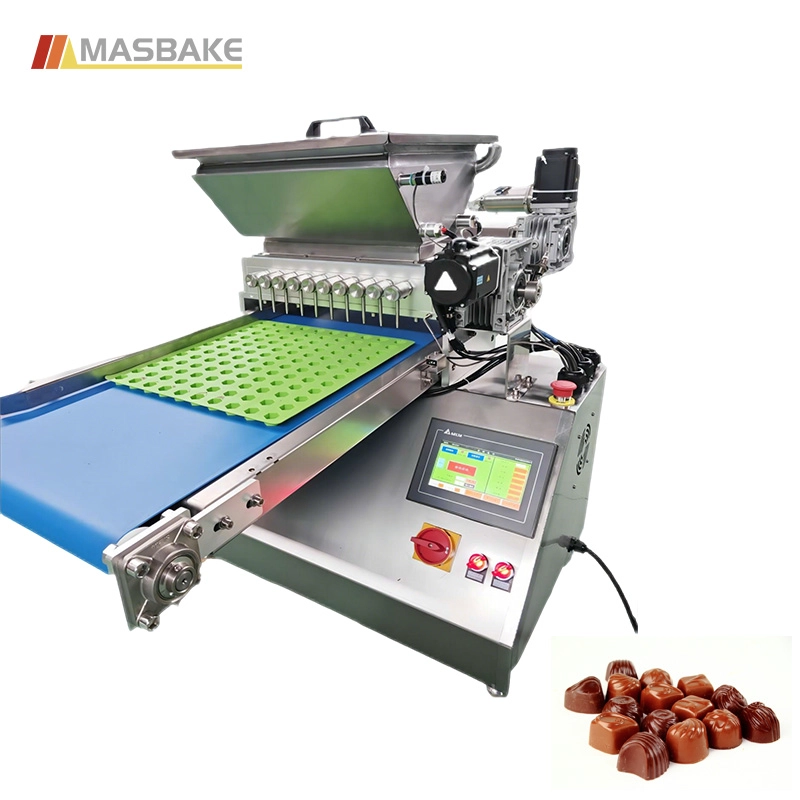

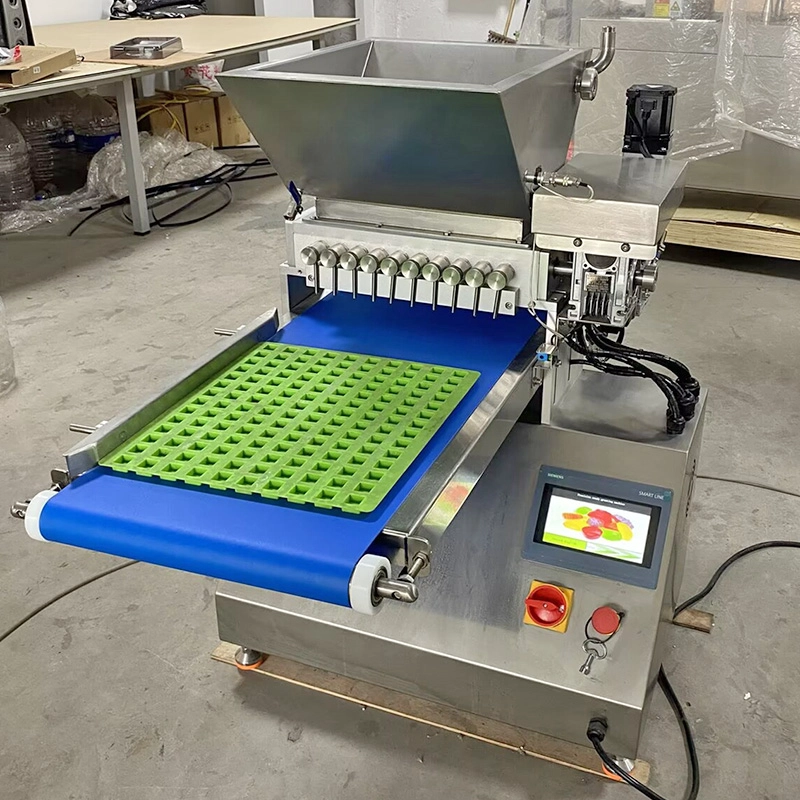

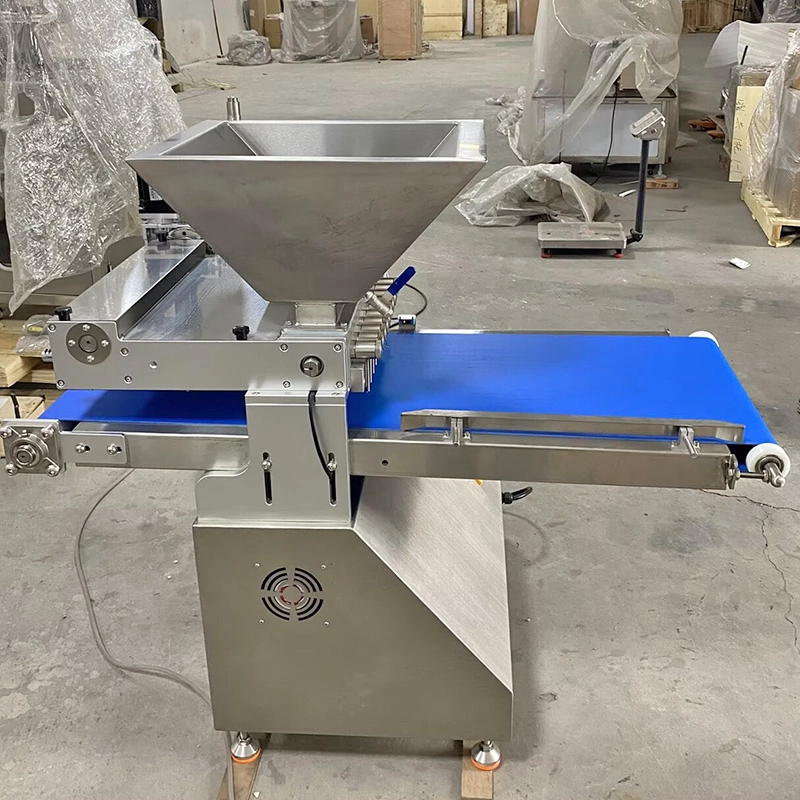

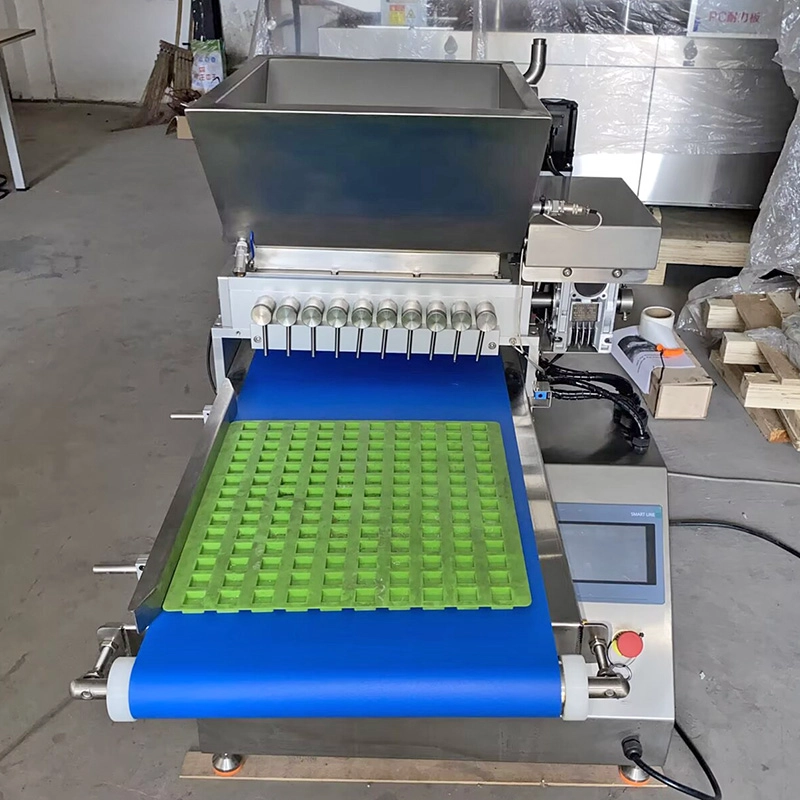

Desktop Chocolate Gummy Candy Depositing Machine | Tabletop Chocolate & Candy Depositor with Heated Hopper PLC Servo Control
Overview of Chocolate Gummy Candy Depositor with Heated Hopper Plc Servo Control
The Desktop Chocolate Gummy Candy Depositing Machine is a compact and precision-controlled confectionery depositor designed for small-batch candy production, product development, laboratories, and startup confectionery businesses. Suitable for gummy candies, chocolates, syrups, liquids, and paste materials, this tabletop depositing machine delivers accurate and consistent filling performance while occupying minimal workspace.
Equipped with a PLC control system, HMI touch screen, and three servo motors, the machine allows precise adjustment of depositing volume and nozzle positioning for different molds and product requirements. The standard 10-nozzle design improves production efficiency while maintaining stable and uniform depositing results.
To ensure smooth production and prevent material solidification, both the hopper and depositing nozzles are equipped with heating functions. The system can also store production parameters for different flavors, colors, and product shapes, making operation more convenient and repeatable.
This desktop candy depositor is widely used for gummy candy manufacturing, chocolate depositing, nutraceutical gummy production, CBD gummies, soft candy production, and confectionery R&D applications.
Masbake bakery automation equipment manufacturer in China provides professional customization options available to meet specific production requirements, including stand-alone machines, and full-automation production lines, or customized solutions for integration with existing machinery systems.
Main Features of Chocolate Gummy Candy Depositor with Heated Hopper Plc Servo Control
Compact Desktop Design
Small footprint design saves production space and is ideal for laboratories, workshops, startup candy factories, and small-batch production environments.

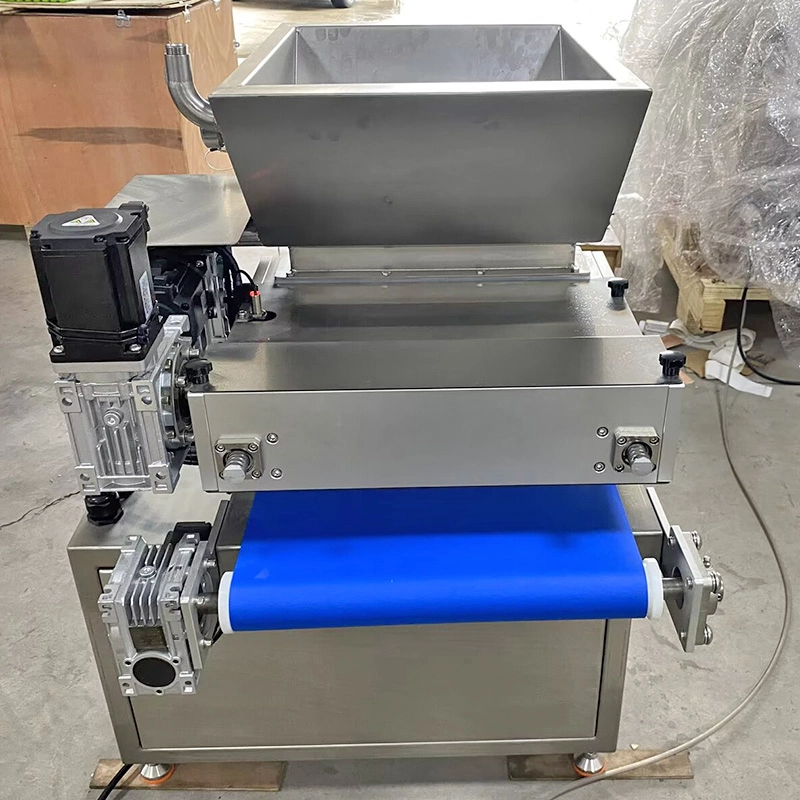

Precision Servo Depositing System
Equipped with three servo motors and PLC intelligent control for accurate depositing volume, stable operation, and high filling consistency.

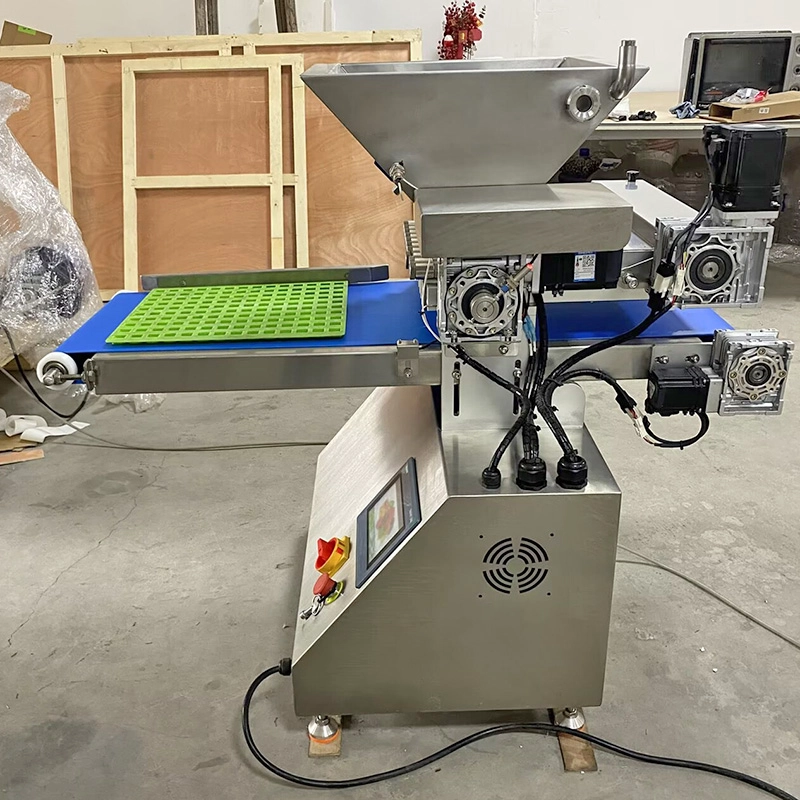

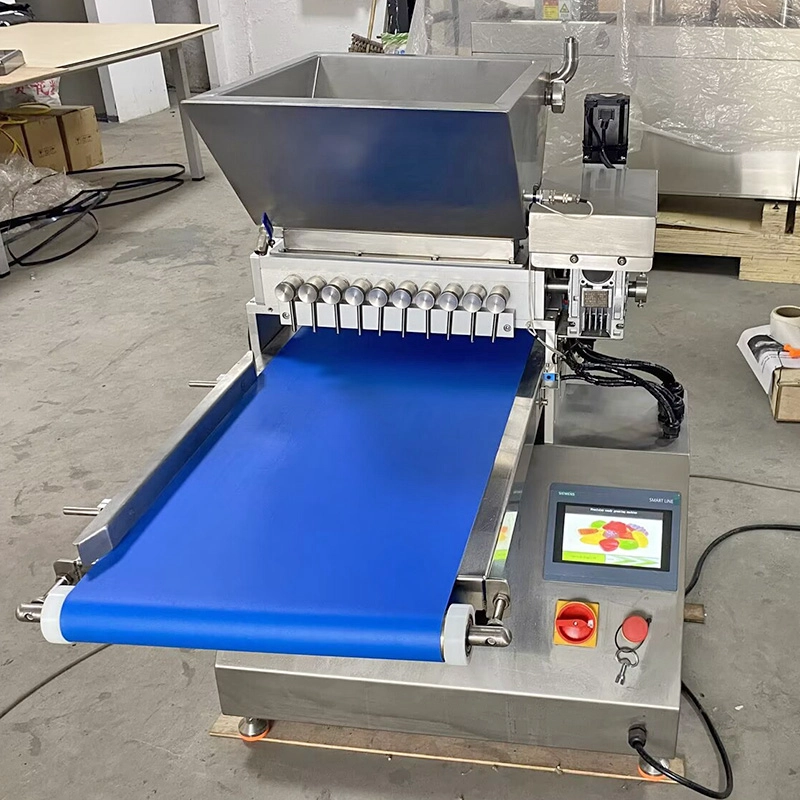

HMI Touch Screen Control
User-friendly HMI interface allows easy adjustment of depositing parameters and convenient machine operation.

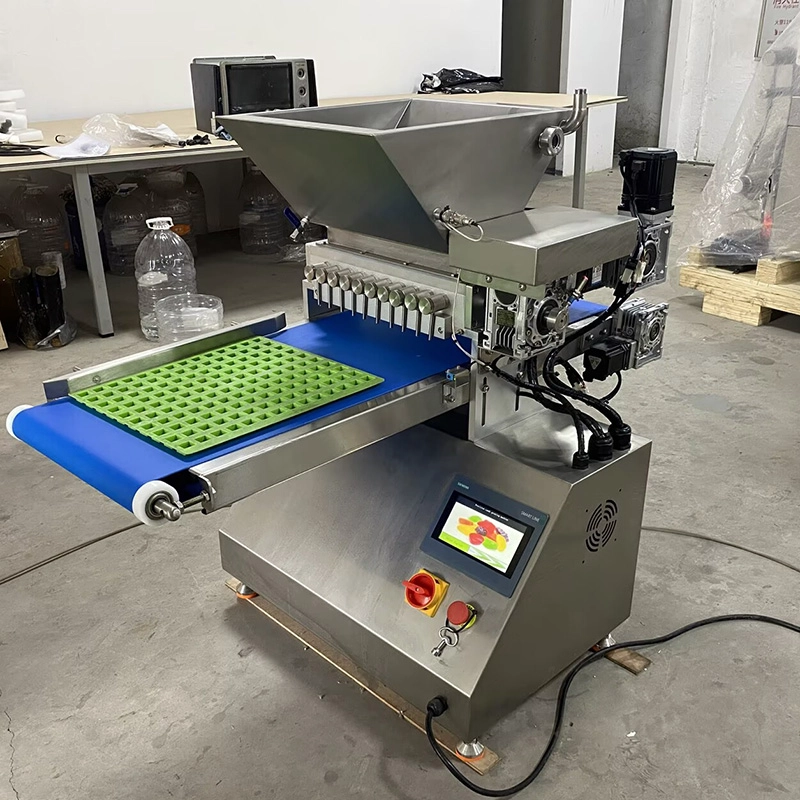

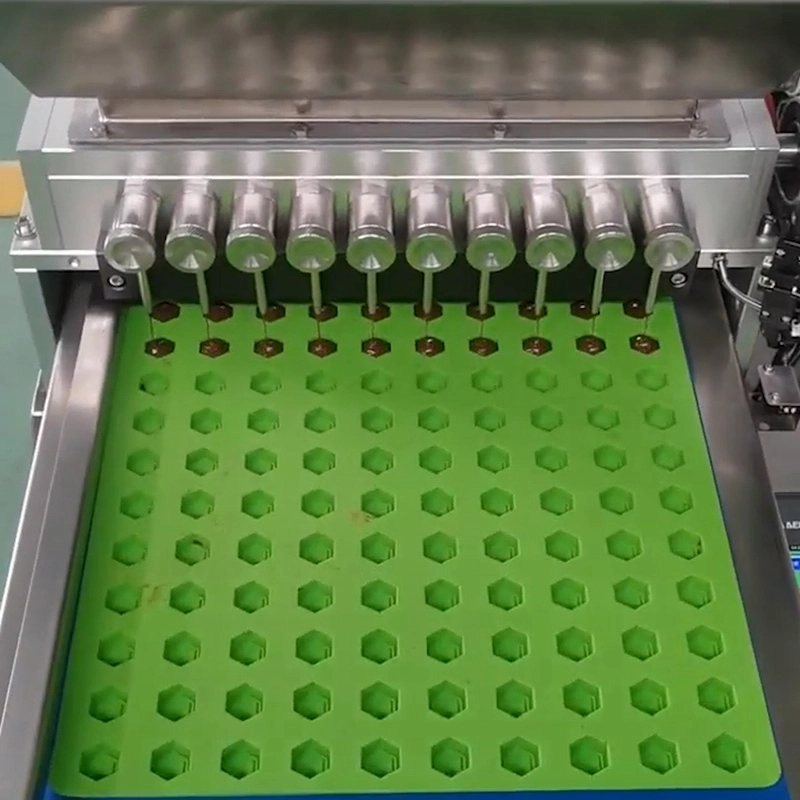

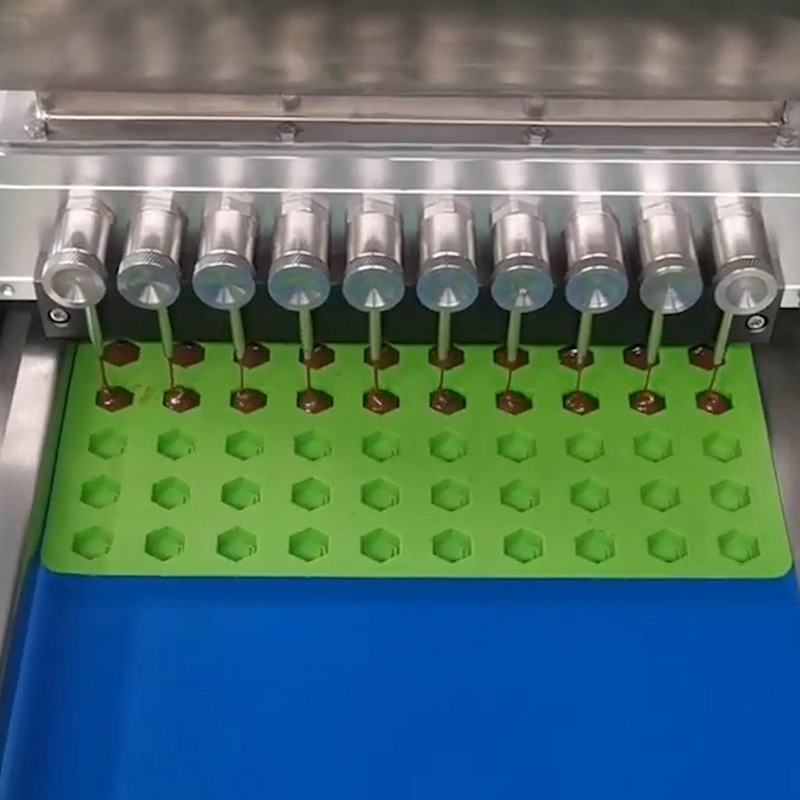

10 Adjustable Depositing Nozzles
Standard 10-nozzle configuration improves production efficiency. Nozzle positions can be adjusted to accommodate different mold sizes and layouts.
Heating System for Stable Production
Both the hopper and depositing nozzles feature heating functions to effectively prevent material solidification and ensure smooth depositing performance.
Recipe Storage Function
The machine can store production settings for different flavors, colors, and product shapes, improving operational efficiency and repeatability.
Wide Application Range
Suitable for gummy candy, chocolate, soft candy, liquid materials, paste products, nutraceutical gummies, CBD gummies, and other precision depositing applications.
Ideal for Small-Batch & R&D Production
Perfect for confectionery laboratories, new product development, pilot production, custom candy manufacturing, and small-scale commercial production.
Optional Customization Available
Custom nozzle quantity, mold compatibility, and other configurations can be customized according to production requirements.
FAQs
This machine is suitable for gummy candies, chocolate, soft candy, syrups, liquid products, paste materials, nutraceutical gummies, CBD gummies, and other small-dose depositing applications.
Yes. The desktop design is specially developed for small-batch production, product development, laboratories, startup candy businesses, and pilot-scale manufacturing.
The machine is equipped with 10 standard depositing nozzles. The nozzle positions can be adjusted to match different mold sizes and layouts.
Yes. The depositing volume can be easily adjusted through the HMI touch screen control system for precise filling accuracy.
Yes. Both the hopper and depositing nozzles are equipped with heating systems to prevent material solidification and maintain smooth depositing performance.
The machine adopts a PLC control system combined with three servo motors and an HMI touch screen interface for stable and precise operation.
Yes. The machine can be used for chocolate depositing applications, especially for small-scale and precision filling production.

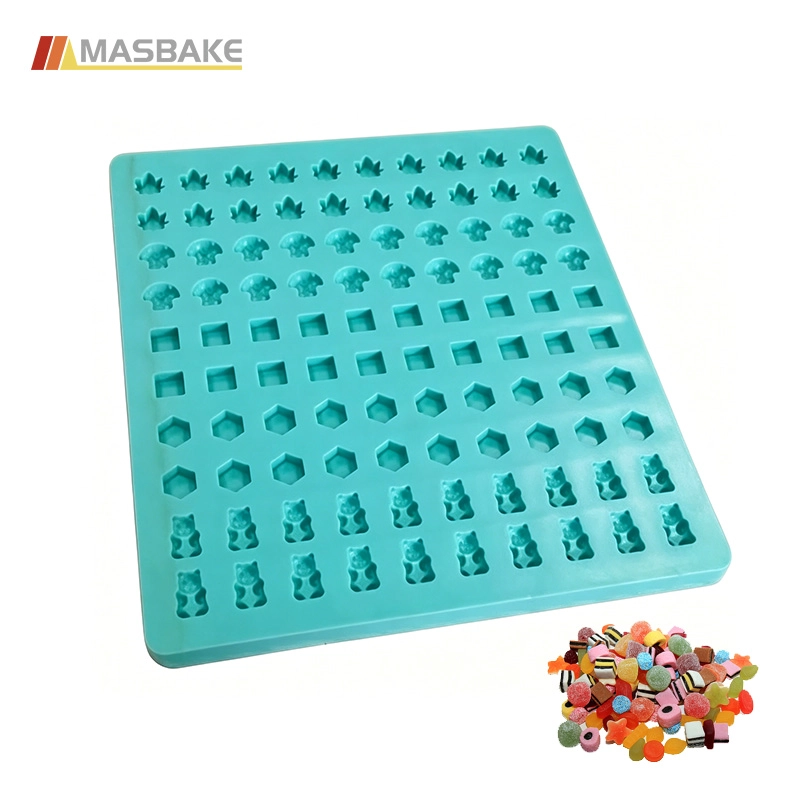

Yes. The machine is compatible with molds of various shapes and sizes, making it suitable for diverse confectionery products.
